Align

Note

Available in: Text Mode

Content inside: Math Mode

Suggestion Box Name: \align

Note

There is another Aligned for Math Mode

Tip

This component is useful for displaying multiple lines of equations aligned on the = sign

Text Alignment:

• Odd columns (1, 3, 5, 7, …) are right-aligned
• Even columns (2, 4, 6, 8, …) are left-aligned

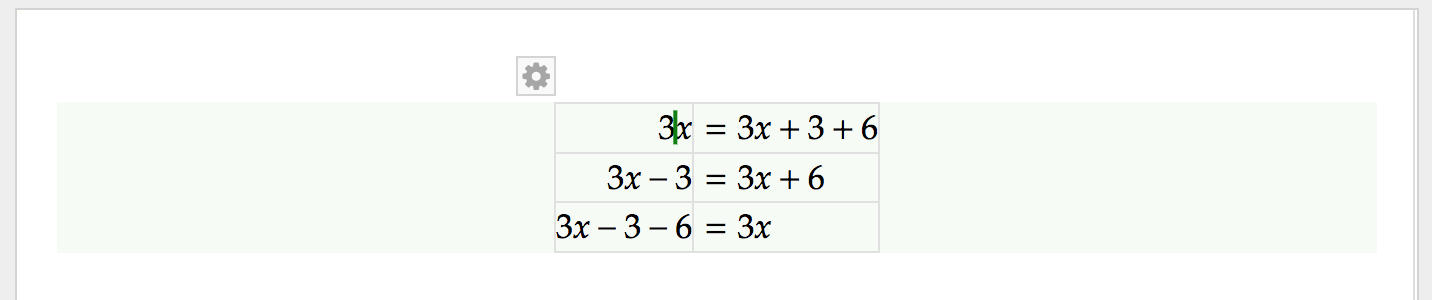

Example

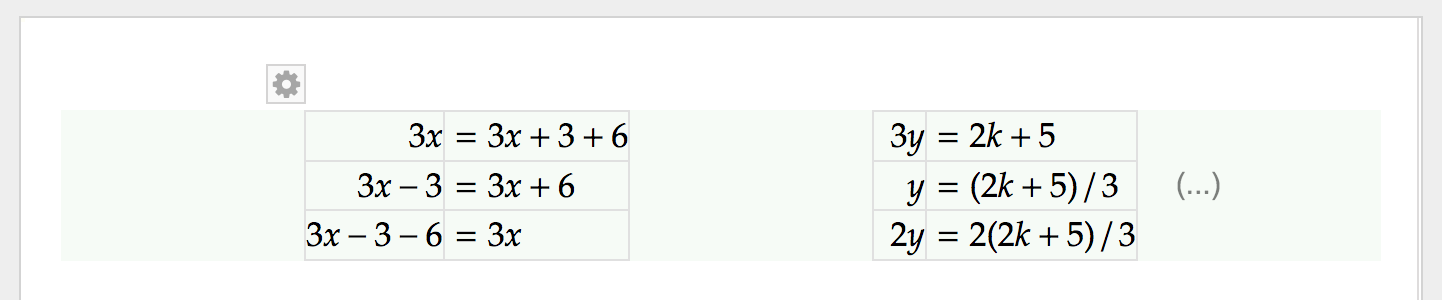

Example of 4 columns

With multiple columns, each column pair is positioned evenly within the document width. (This is different from Aligned in Math Mode.)

Add/Remove Rows/Columns

Refer Matrix

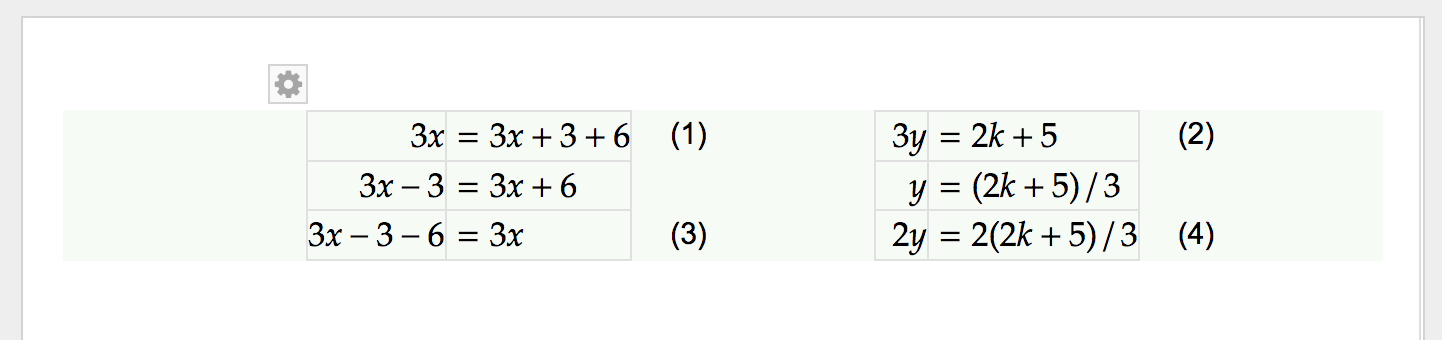

Numbering Tag

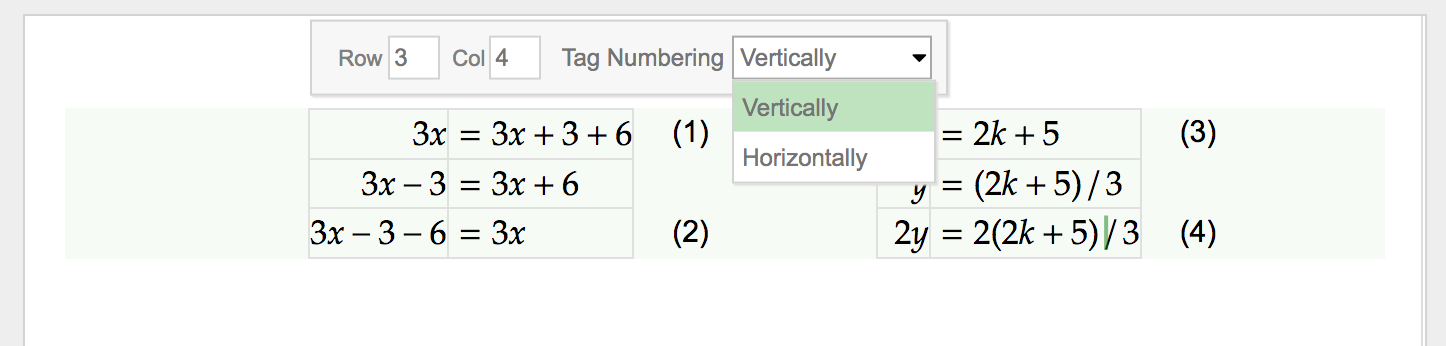

• A Numbering Tag can be added on the right side of cells in even-numbered columns (2, 4, 6, …). See Math Numbering Tag for details.

• Numbering can be configured to increase vertically
